Engine::Node Class Reference

A single node in a game scene. More...

#include <Node.hpp>

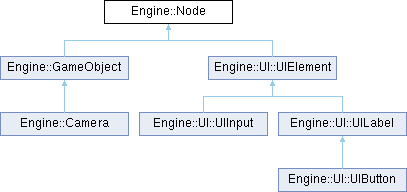

Inheritance diagram for Engine::Node:

Public Member Functions
	Node (std::string name)
	Default constructor.
virtual	~Node ()
	Default destructor.
size_t	AddChild (Node *child)
	Adds a child to the node and assigns itself as the parent of the new node.
Node *	GetChild (size_t index)
	Returns a reference to the child at the specified index.
Success	RemoveChild (size_t index)
	Removes the child at the specified index.
Success	SetEnabled (bool enabled=true)
	Toggles the state of the node.
virtual void	OnEnable ()
	Overridable enable method for the node.
virtual void	OnDisable ()
	Overridable disable method for the node.
virtual void	Init ()
virtual void	Draw ()
	Overridable draw method for the node.
virtual void	Update (float dt)
	Overridable update method for the node.

Public Attributes
const char *	m_nodeType
std::string	m_name

Protected Attributes
Node *	m_parent

Detailed Description

A single node in a game scene.

Each node is linked with a parent and its children. Nodes can be game objects, scenes, UI elements, etc. There are predefined subclasses, but you can also make your own to manage the behaviour of scenes.

Example

class ExampleNode : public Node {
  public:
  Cube mesh;
  CubeObject() : Node("Cube") {}
}

class ExampleScene : public Scene {
  public:
  ExampleNode node;
  ExampleScene() : Scene("ExampleScene") {
    AddChild(&node);
  }
}

Author

Roberto Selles

Member Function Documentation

AddChild()

size_t Engine::Node::AddChild

(

Node *

child

)

Adds a child to the node and assigns itself as the parent of the new node.

Parameters

child

The child to add

Returns

The index of the child

Draw()

void Engine::Node::Draw ( )

virtual

Overridable draw method for the node.

Warning

To maintain recursiveness, this method must be called in each method override

GetChild()

Engine::Node * Engine::Node::GetChild

(

size_t

index

)

Returns a reference to the child at the specified index.

Parameters

index

The index of the child to return

Returns

A reference to the child

Init()

void Engine::Node::Init ( )

virtual

Reimplemented in Engine::UI::UIButton, Engine::UI::UIElement, Engine::UI::UIInput, and Engine::UI::UILabel.

OnDisable()

void Engine::Node::OnDisable ( )

virtual

Overridable disable method for the node.

Calls this whenever the node is disabled

Reimplemented in Engine::UI::UIElement.

OnEnable()

void Engine::Node::OnEnable ( )

virtual

Overridable enable method for the node.

Calls this whenever the node is enabled

Reimplemented in Engine::UI::UIElement.

RemoveChild()

Engine::Success Engine::Node::RemoveChild

(

size_t

index

)

Removes the child at the specified index.

Parameters

index

The index of the child to remove

Returns

SUCCESS if the child was removed, FAILURE otherwise

SetEnabled()

Engine::Success Engine::Node::SetEnabled

(

bool

enabled = true

)

Toggles the state of the node.

This method triggers callbacks onEnable and onDisable if the state changes successfully.

Parameters

enabled

The new state of the node

Returns

SUCCESS if the state changed successfully, FAILURE otherwise

Update()

void Engine::Node::Update ( float  dt )

virtual

Overridable update method for the node.

Warning

To maintain recursiveness, this method must be called in each method override

---

The documentation for this class was generated from the following files:

• src/engine/Node.hpp
• src/engine/Node.cpp
